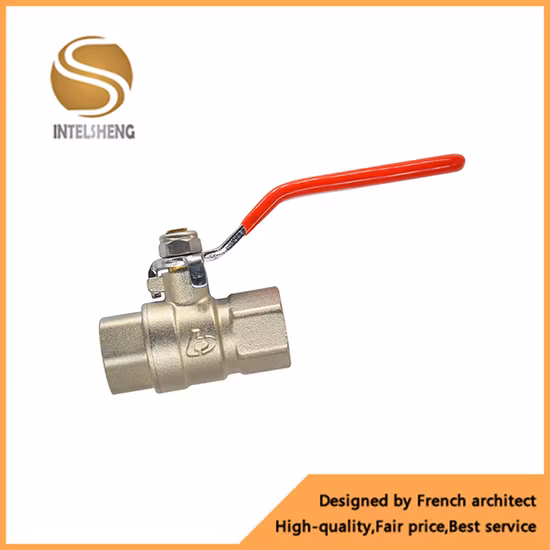

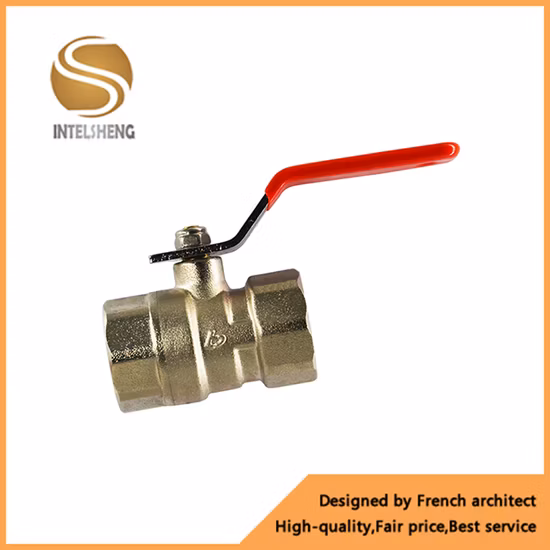

1/2, 3/4, 1, 1-1/4, 1-1/2, 2 Inch Lockable Forged Brass Ball Valve with Long Handle Male Fermale Thread Long Handle (TF-118)

Basic Info

Model NO.	TF-118
Structure	Fixed Ball Valve
Type	Fixed Ball Valve
Function	Blow-Down Valve, Relief Valve, Atmospheric Valve, Bypass-Valve
Temperature	High Temperature
Application	Industrial Usage, Water Industrial Usage, Household Usage
1/2′′-2′′	Thread Size
Export Markets	Global
Thread	Male*Female/Male*Male/Female*Female
Handle Material	SS304/Ss201/Iron
Handle Type	Lever
Working Pressure	Pn1.0-32.0MPa
Sample	Accepted
OEM/ODM	Accepted
Insurance	Cathay Insurance
Transport Package	Export Standing Packing
Specification	brass material
Trademark	INTELSHENG
Origin	Yuhuan, China
HS Code	84818040
Production Capacity	50, 0000PCS/Month

Product Description

SPECIFICATIONS FOR Manufacture Supplier Brass Water Ball Valves:

Item	Brass ball valve
Model Number	TF-118
Material	Brass/Copper/CW617N/CW614N/CW612N/C36000
Size	1/4''-4''
Handle	Iron/SS201/SS304 plate (blue and red)
Working pressure	PN1.0-32.0
Guarantee time	3 years
MOQ	300 pieces
Packing	Standars export package or Customized
Payment	TT,L/C,D/P,Western Union
Trademark	INTELSHENG
Sample time	8-10days,depends on product style and workmanship
Customized	All customized services are welcome
Payment Terms	30% prepaid; 70% balance payment after finish the production before delivery
QC system	100% inspection before shipment
Certificate	ISO9001

Brass Ball Valve Descriptions(TF-118):
Body Material: Brass Ball: brass chrome plated Ball seat and packing: PTFE Stem and gland: brassHandle: Steel chrome plated with PVC coatingMedium: water, oil, air,gasTemperature: -10ºC-110ºCThread: Female*FemaleHandle: Iron/SS201/SS304 plate (blue and red)Working pressure: Up to PN 32.0Ball valves: 600 WOG full port, reduced port.Thread: PT. PF. NPT. G. BSP. NPS . BSPTAvailable from Male to Male Mainly use in Agricultural field and Air pump

Brass Ball Valve Structure(TF-118):

Size	DN	B	D	H	L
1/2F×1/2F	15	81	12	42.5	51.5
3/4F×3/4F	20	81	15	44.6	58
1F×1F	25	110	20	48.8	67.5
1¼F×1¼F	32	110	25	53.5	76
1½F×1½F	40	125	32	63	87
2F×2F	50	125	40	69.5	104.5

1/2''-2'' Brass Ball Valve TF-118 Specifications:

Ball valve	Thread Size(F&F)	Weight(g)	Body Material	Ball Material	Handle Material
DN15	1/2''	178	BRASSCOPPERHpb59-1Hpb57-3CW617N	BRASS NATURAL COLORBRASS CHROM PLATED	IronSS301SS304
DN20	3/4''	250
DN25	1''	393
DN32	1¼''	581
DN40	1½''	807
DN50	2''	1181

Hot-selling Brass Valve:

About Ball valve:

A ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivotingball to control flow through it. It is open when the ball's hole is in line with the flow and closed when itis pivoted90-degrees by the valve handle. The handle lies flat in alignment with the flow when open,and is perpendicular to it when closed, making for easy visual confirmation of the valve's status.In the case that a ball valve is used for cryogenics or product that may expand inside of the ball, thereis a vent drilled into the upstream side of the valve. This is referred to as a vented ball. Safety is thenumber one concern when engineers specify a vented ball.

Marks: A ball valve should not be confused with a "ball-check valve", a type of check valve that usesa solid ball to prevent undesired backflow.
